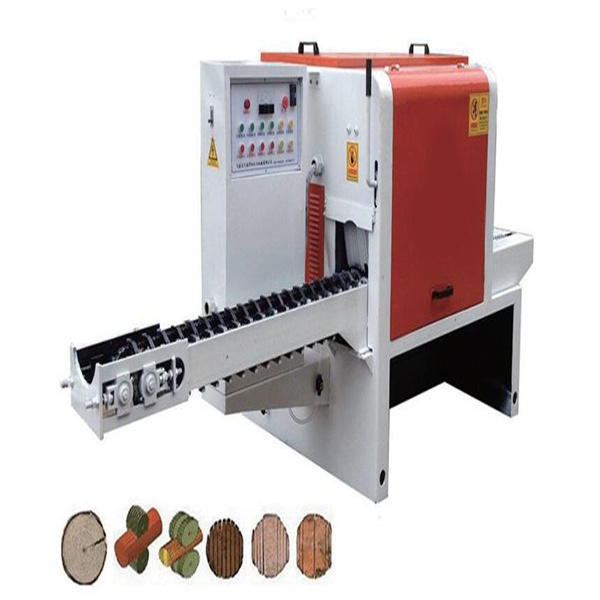

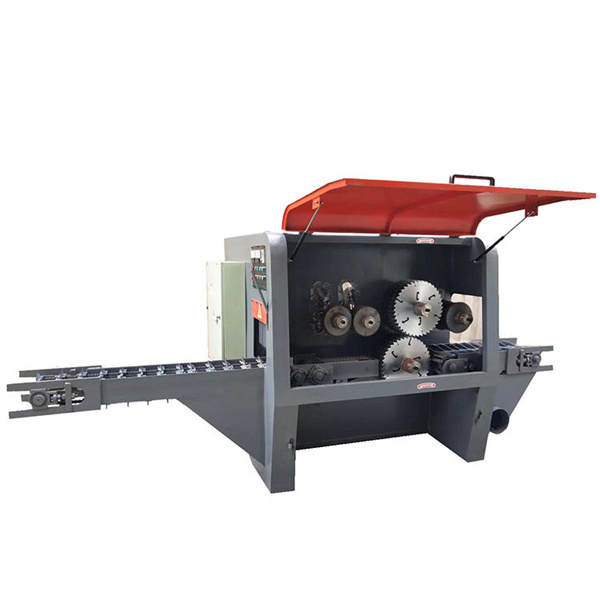

Multi blade wood saw machine

Description Inquire

Our multi blade rip saw machines covering double shaft log cutting rip saw,double shaft board cutting rip saw,single shaft board cutting rip saw and slab cutting saw,edge saw,etc.

Technical Datas for Log Cutting Multiple Blade Rip Saw

Model	HT200	HT250	HT300	HT350	HT400	HT450
Sawing Log Diameter	80-200 mm	250 mm	300 mm	200-350 mm	250-400 mm	300-450 Mm
Min Sawing Log Length	600mm	600mm	600mm	600mm	600mm	600mm
Blade Cooling Method	Shaft Center Water Cooling			Axis watering
Power	22 KWx2	30 KWx2	37 KWx2	45 KWx2	55 KWx2	55 KWx2
Feeding Motor	1.5KW	1.5KW	2.2KW	2.2KW	2.2KW	2.2KW
Saw Blade Diameter	305mm	355mm	405mm	480mm	520mm	600mm
Net weight	2000kg	2500kg	2800kg	3200kg	3500kg	3800kg
