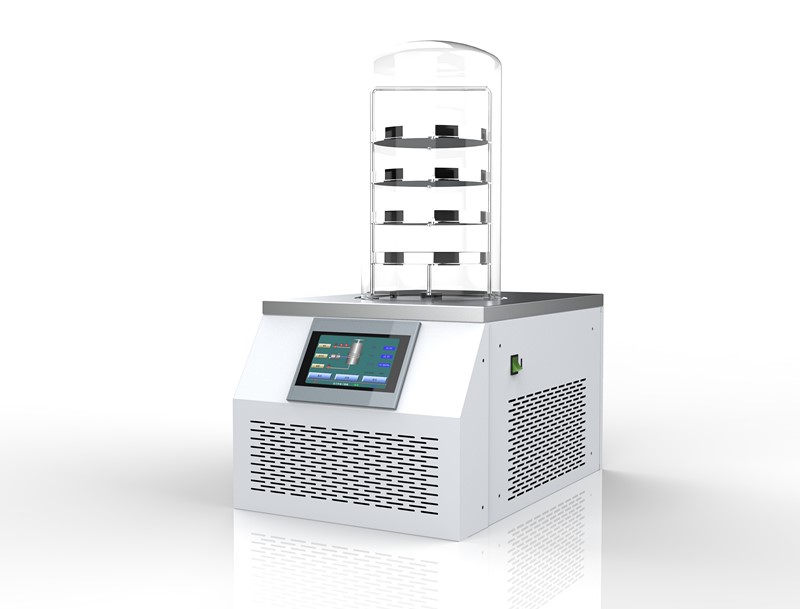

HT-12N Laboratory Freeze Dryer



HT-10N Laboratory Freeze Dryer Series （-65℃/-82℃）

Product purpose:

Vacuum freeze-drying machines are widely used in fields such as medicine, pharmaceuticals, biological research, chemical engineering, and food. Items that have undergone freeze-drying treatment are easy to preserve for a long time, and can be restored to their pre freeze-drying state and maintain their original biochemical characteristics after adding water. The HT-10N series desktop freeze-drying machine is suitable for laboratory use or small-scale production, and can meet the requirements of most laboratory routine freeze-drying.

Main features:

● the machine adopts imported brand Cisco compressor for refrigeration, with stable performance, rapid refrigeration, low cold trap temperature and strong water capture capacity.

● the cold trap has a large opening and is made of corrosion-resistant 304 stainless steel, which meets the requirements of GLP; It has the function of sample pre freezing in the early stage, and there is no need to be equipped with ultra-low temperature refrigerator or treated with liquid nitrogen.

● the 7-inch true color LCD touch screen control system is adopted, which is simple and convenient to operate and has powerful functions. It is used as the man-machine interface and Chinese (English) convertible interface. The system is equipped with various sensors to display the working time, cold trap temperature, sample temperature and vacuum degree in curve and digital form, and record the drying curve and data;

● industrial embedded operating system with fast operation response speed and large amount of stored data; It is stored in Excel file, which can store a large amount of measurement data, and is equipped with USB communication interface. The experimental data can be extracted with one key on USB flash disk, and the printed data can be browsed through the computer.

● intelligent data recording system can automatically save freeze-drying data, continuously record real-time data, generate tables and view them in the form of real-time curve and historical curve, and the whole freeze-drying process is clear.

● the starting temperature of the vacuum pump can be preset. When it is lower than the set temperature, the vacuum pump can be started effectively to prevent a large amount of water vapor from entering the pump; Extend the service life of vacuum pump.

● with compressor secondary start delay protection.

● the drying chamber adopts colorless and transparent one-time injection molding polycarbon drying chamber, which is corrosion-resistant, non fragile, non adhesive, high transparency, strong tightness, clear and intuitive samples, and can observe the whole process of freeze-drying.

● it has the function of cold trap electric heating and defrosting to shorten the waiting time for secondary use.

●the connection between the vacuum pump and the main engine adopts international standard KF quick connector, which is simple and reliable.

●all stainless steel drain and inflation valve, safe, corrosion-resistant and leak free.

●user password can be set, and operation management can be performed by authority.

Click directly to send a message via WhatsApp

HT-12N（-65℃ AT-frame）

Technical Indicators:

Lyophilized Area:/

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Capture Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Interface: 24 Ampoule Bottle

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580 * 500 * 730 + 430mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/CG (-65 ℃ Multi Manifold Standard Type+Wide Mouth Bottle)

Technical indicators:

Freeze Drying Area: 0.12 ㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: φ 200mm

Plate Layer Spacing: 70mm

Lyophilized Bottles: 8, 4 *600ml, 4*1200ml

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+465mm

Loadable Material: 1.2L (Material Thickness 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/DG (-65 ℃ Multi Manifold Gland Type+Wide Mouth Bottle)

Technical Indicators:

Freeze Drying Area: 0.08㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:3- 4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Lyophilized Bottles: 8, 4 *600ml, 4*1200ml

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+535mm

Loadable Material: 0.8L

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/A (- 65 ℃ Standard Type)

Technical Indicators:

Freeze Drying Area: 0.12㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: φ 200mm

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+430mm

Loadable Material: 1.2L (Material Thickness: 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12NB  (- 65 ℃ Gland Type)

Technical Indicators:

Freeze Drying Area: 0.08㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension:580*500*730+500mm

Loadable Material: 0.8L (Material Thickness: 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz





HT-12N (- 65 ℃ Multi Manifold Standard)

Technical Indicators:

Freeze Drying Area: 0.12 ㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5Pa

Water Catching Capacity: 3-4Kg / Batch

Extraction Rate: 2l / s

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: Φ 200Mm

Plate Layer Spacing: 70Mm

Lyophilized Bottles: 8, 4 *250Ml, 4*500Ml

Cooling Mode: Air Cooling

Overall Power: 950w

Overall Dimension: 580*500*730+465Mm

Loadable Material: 1.2l (Material Thickness 10Mm)

Vials For Xilin: ф 12Mm / 16Mm / 22Mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220v 50hz





HT-12N/D (- 65 ℃ Multi Manifold Gland Type)

Technical Indicators:

Freeze Drying Area: 0.08㎡

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:3- 4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Lyophilized Bottles: 8, 4 *250ml, 4*500ml

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+535mm

Loadable Material: 0.8L

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz





HT-12N/GT (- 65 ℃ T-Frame+Wide Mouth Bottle)

Technical Indicators:

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Wide Mouth Bottle Interface: 8/12

Quantity Of Wide Mouth Bottles: 600ml * 8/12 Pieces

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+430mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz





HT-12N/QT (- 65 ℃ T-Frame+Eggplant Bottle)

Technical Indicators:

Cold Trap Temperature (No Load): ≤ - 65 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Eggplant Bottle Interface: 8/12

Number Of Eggplant Bottles: 250ml * 4/6, 500ml * 4/6

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 580*500*730+430mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/CG (-82 ℃ Multi Manifold Standard Type+Wide Mouth Bottle)

Technical Indicators:

Freeze Drying Area: 0.12 ㎡

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: φ 200mm

Plate Layer Spacing: 70mm

Lyophilized Bottles: 8, 4 *600ml, 4*1200ml

Cooling Mode: Air Cooling

Overall Power: 1350W

Overall Dimension:750*510*730+465mm

Loadable Material: 1.2L (Material Thickness 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/DG (-82 ℃ Multi Manifold Gland Type+Wide Mouth Bottle)

Technical Indicators:

Freeze Drying Area: 0.08㎡

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:3- 4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Lyophilized Bottles: 8, 4 *250ml, 4*500ml

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 1350W

Overall Dimension: 580*500*730+535mm

Loadable Material: 0.8L

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N（-82℃ At-Frame）



Technical Indicators:

Lyophilized Area:/

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Capture Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Interface: 24 Ampoule Bottle

Cooling Mode: Air Cooling

Overall Power: 1550W

Overall Dimension: 750*510*730+430mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz





HT-12N/A (-82 ℃ Standard Type)

Technical Indicators:

Freeze Drying Area: 0.12㎡

Cold Trap Temperature (No Load): ≤ -82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: φ 200mm

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 1550W

Overall Dimension: 750*510*730+430mm

Loadable Material: 1.2L (Material Thickness: 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/B (- 82 ℃ Gland Type)

Technical Indicators:

Freeze Drying Area: 0.8㎡

Cold Trap Temperature (No Load): ≤ - 82℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 1550W

Overall Dimension750*510*730+430mm

Loadable Material: 0.78L (Material Thickness: 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/C (- 82℃ Multi Manifold Ordinary Type)

Technical Indicators:

Freeze Drying Area: 0.12 ㎡

Cold Trap Temperature (No Load): ≤ -82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 4 Layers

Number Of Material Trays: 4

Material Tray Size: φ 200mm

Plate Layer Spacing: 70mm

Lyophilized Bottles: 8, 4 *250ml, 4*500ml

Cooling Mode: Air Cooling

Overall Power: 1550W

Overall Dimension: 750*510*730+450mm

Loadable Material: 1.2L (Material Thickness 10mm)

Vials For Xilin: Ф 12mm / 16mm / 22mm: 920 / 480 / 260 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/D  (- 82℃ Multi Manifold Gland Type)

Technical Indicators:

Freeze Drying Area: 0.075㎡

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity:4kg / Batch

Extraction Rate: 2L / S

Shelf Layers: 3 Layers

Number Of Material Trays: 3

Material Tray Size: φ 180mm

Lyophilized Bottles: 8, 4 *250ml, 4*500ml

Plate Layer Spacing: 70mm

Cooling Mode: Air Cooling

Overall Power: 150W

Overall Dimension: 750*510*730+465mm

Loadable Material: 0.8L

Vials For Xilin: Ф 12mm / 16mm / 22mm: 560 / 285 / 165 Pcs

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N/GT (- 82℃T-Frame+Wide Mouth Bottle)

Technical Indicators:

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Catching Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Wide Mouth Bottle Interface: 8/12

Quantity Of Wide Mouth Bottles: 600ml * 8/12 Pieces

Cooling Mode: Air Cooling

Overall Power: 950W

Overall Dimension: 750*510*730+465mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz



HT-12N (- 82℃ QT frame eggplant bottle)

Technical Indicators:

Cold Trap Temperature (No Load): ≤ - 82 ℃

Vacuum Degree: ≤ 5pa

Water Capture Capacity: 3-4kg / Batch

Extraction Rate: 2L / S

Eggplant Bottle Interface: 8/12

Cooling Mode: Air Cooling

Overall Power: 1550W

Overall Dimension: 750*510*730+465mm

Operating Ambient Temperature: ≤ 25 ℃

Power Supply: 220V 50Hz
