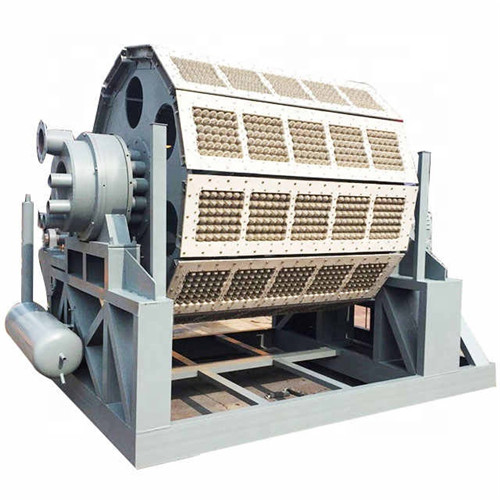

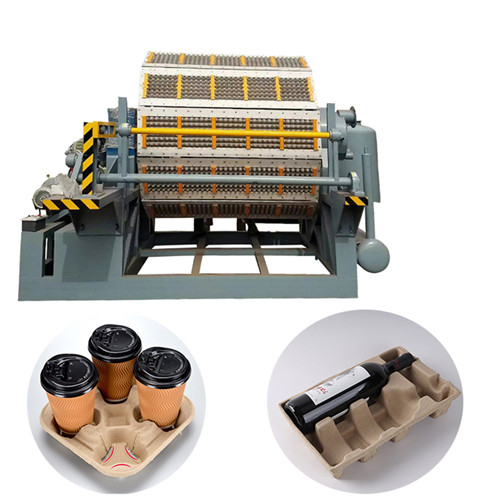

Egg Tray Machine

Manufacturers customized high-end multi-specification environmentally friendly degradable pulp digital products lined with paper trays, waterproof and oil-proof egg trays, kitchen utensils, pulp boxes, cat litter trays, industrial products packaging, pulp boxes, paper plastic molds.

The mold design must meet the structural requirements of pulp molded products, and the structure of pulp molded products must not only meet the conditions of use and molding process, but also meet the requirements of mold design and manufacturing.

Therefore, before designing pulp molding molds, the structure of pulp molding products must be fully analyzed and studied in order to coordinate and unify the economic rationality and technical feasibility of product design and mold design.
During the molding process of pulp molded products, pulp molded products must enter the mold multiple times to finally complete the product manufacturing process. This is because pulp molded products are formed on a single convex or concave mold. After molding, they must be placed in the mold cavity after the convex and concave molds are closed. Transfer, the wet paper blank transferred to the shaping mold is pressurized and heated in the shaping mold and then formed.

Classification：Full Automatic, According to the model, production capacity can be 1000 to 6000 pieces per hour，Power varies from 35 to 175kw.

Equipment parameters:380V50Hz

Site requirements: length ≥ 70 meters, width ≥ 15 meters (different according to the model)

Production workshop: equipment workshop ≥ 150m2 warehouse ≥ 200m2 (different according to the model)

Production steps：Raw material waste paper-pulp-homogenization stirring-vacuum pump adsorption-air pressure assistance-forming machine products- drying
