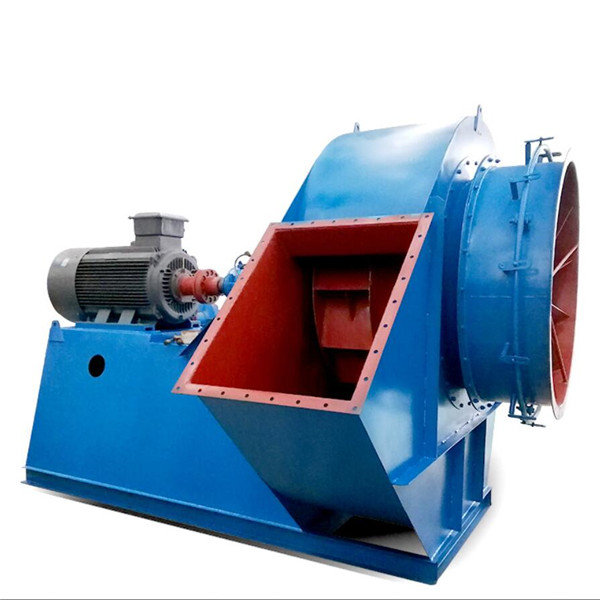

The boiler centrifugal induced draft fan produced by HUATAO has the characteristics of large air volume, high air pressure, stable operation, convenient installation and long service life. It is suitable for burning various coal qualities and equipped with various coal qualities and smoke and dust removal devices and various industrial boilers equipped with smoke and dust removal devices, as well as other uses that meet the requirements of air intake conditions.
Application: It is suitable for industrial boilers that burn various coal qualities and are equipped with smoke and dust removal devices (1-20t/h). Those with comparable air intake conditions and suitable performance can be selected. The relatively high temperature shall not exceed 250℃. The induced draft fan must be equipped with a dust removal device with a dust removal efficiency of not less than 85% to reduce the dust content of the flue gas entering the fan and improve the service life of the fan.
Air volume range: 1000-150000m³/h
Static pressure range: 300-1000Pa

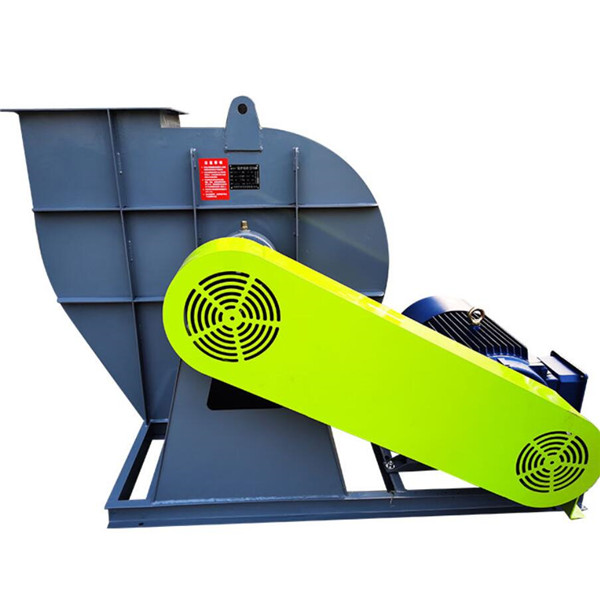

Drive mode: belt type
Installation method: seat
Material: carbon steel, stainless steel, alloy steel
Product application scenarios: widely used in RTO incinerator system, environmental protection industry, textile industry, paper industry, automobile spraying industry, exhaust gas supply and exhaust, dust supply and exhaust, exhaust gas supply and exhaust, dust supply and exhaust, etc.
Advantages: strong wind, stable operation, thick shell material
