Profile:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material: CONCRETE
Processing: Brick Production Line
Method: Hydraulic pressure
Automatic: Yes
Production Capacity (Pieces/8 hours): 5760 pcs/8hours
Brand Name: HUATAO
Voltage: as per local condition
Dimension(L*W*H): 1600*2500*6400
Warranty: 1 Year
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Weight (KG): 4000 kg
Raw material: sand,cement ,stone ,fly ash slag, industrial waste

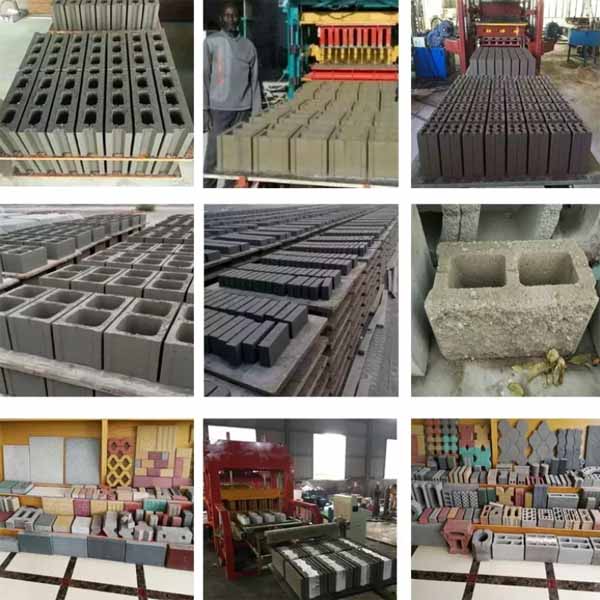

Block Type: hollow ,solid , paver, kerbstone
Color: Customer's Demand
Machine Type: automatic with hydraulic
Introduction

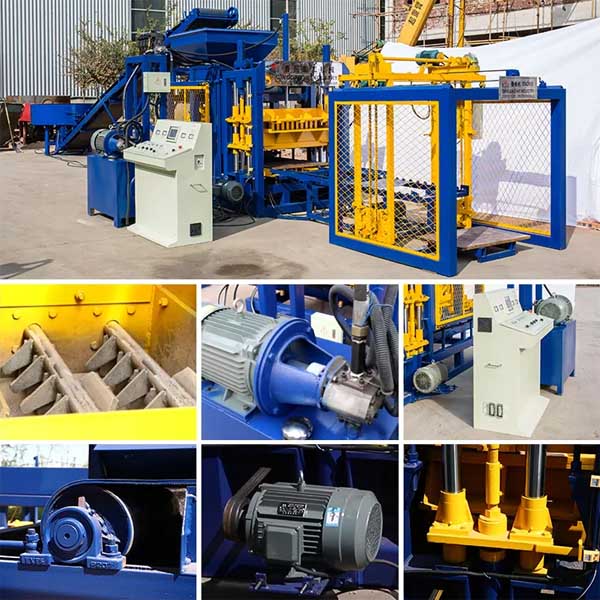

Concrete brick machine is a kind of automatic brick making machine in our company. It is mainly used in construction,bridges, roads. You can make solid brick, hollow brick by changing the molds. Very popular in the country that needs construction. The price was also very adequate in this area.
1)Strong structure, easy to install and maintain.
2) Adoption of advanced components from world famous brands in pneumatic parts, electrical parts and parts of operation.
3) High pressure double crank to control the opening and closing of the die.
4) Running in high automation and intellectualization

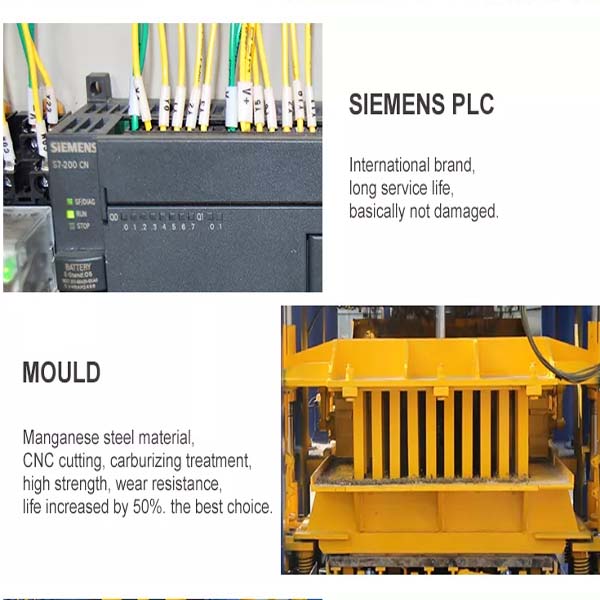

5) Apply famous brand PLC and motors to ensure the durability of the machine.
|
Technical specifications |
|
|
Overall dimension |
6400x1600x2500mm |
|
Rated pressure |
16Mpa |
|
Vibration form |
Platform vibration |
|
Cycle time |
15-25 seconds |
|
Vibrating frequency |
2800-4500 rolls/minute |
|
Power |
26.45 KW |
|
Weight |
4000kgs |
|
Pallet size |
900x550mm |
|
Factory area |
1000m² |
|
Raw materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
|
Applied products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edger, curbstone, grass blocks, slope blocks, interlocking blocks, etc. |
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction works , Energy & Mining
Our Service
1.Machine Color Customized as your requirements
2.Engineers draw drawings as your design and brick shapes can be customized
3.We will test the machine before delivery , make sure the machine is run well
4.We can send engineer to your country , help you install ,debugging the machine and train your workers
5.Come to visit ourfactory, free training
24 hours online support .provide you best Pre-sale and after-sales service
